Select your axle width based on your frame’s hub spacing, drivetrain standards and required stay clearance. All widths are engineered to the same high-strength standard for everything from DJ to DH

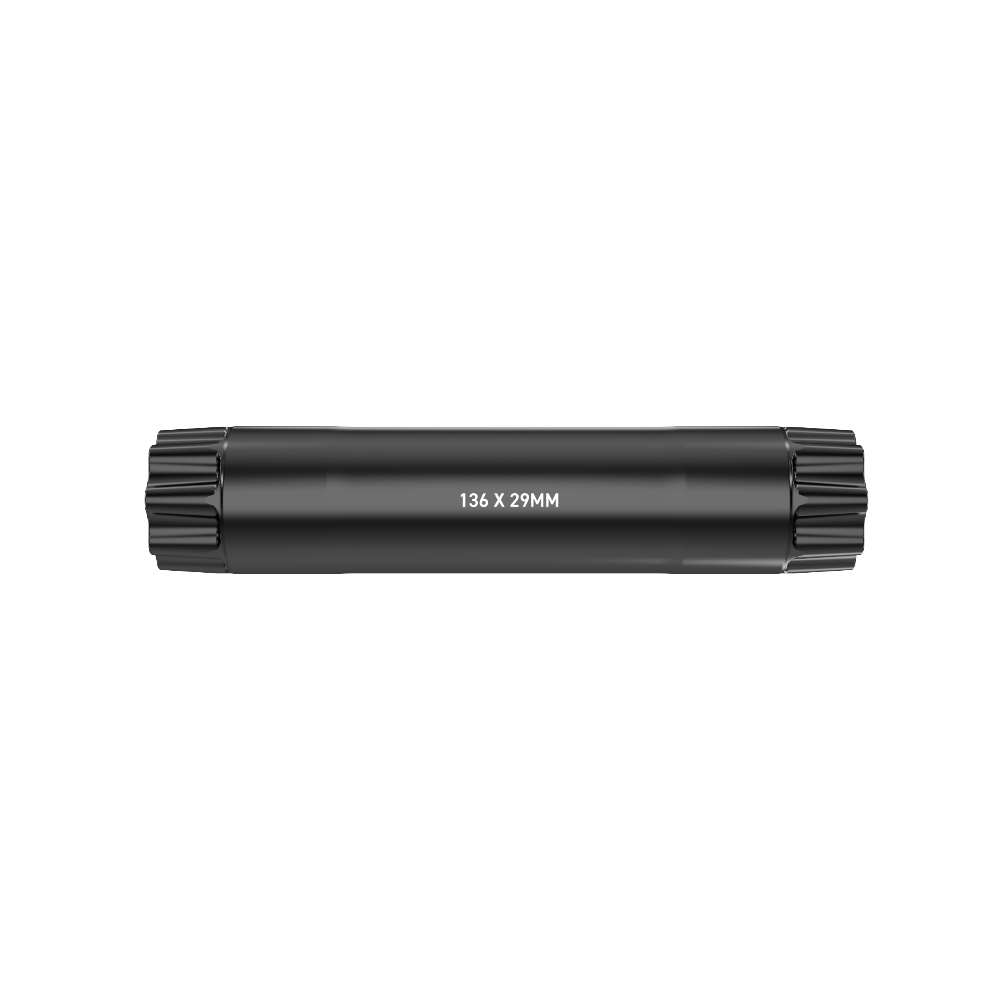

136mm x 29mm
- Chainline: 55mm
- Q-Factor: 174.5mm
- Arm Clearance: 73.25mm
- Frame Fitment: Modern 29” Trail and Enduro frames with high tire clearance and wide stays.
- Standards: Matches SRAM Transmission T-Type, SRAM DUB Wide and Shimano M9120, M8120, M7120
- Technical Note: Required for SRAM T-Type system. Provides +3mm lateral arm clearance per side to clear flare or oversized chainstays.

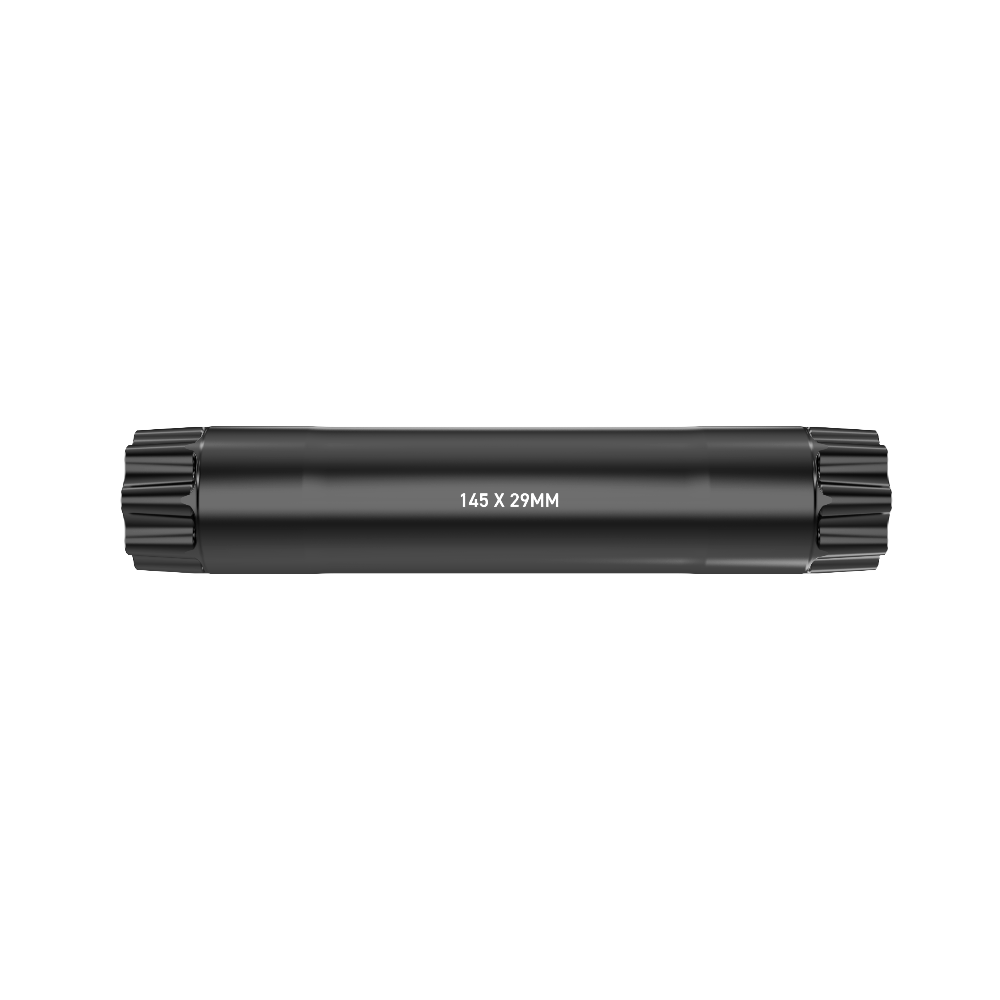

145mm x 29mm
- Chainline: 56.5mm
- Q-Factor: 183.5mm
- Arm Clearance: 77.75mm
- Frame Fitment: Downhill (DH) and Super Boost+ Frames
- Standards: Matches SRAM DUB DH, SRAM SB+ (Super Boost) and Shimano M9130/M8130
- Technical Note: Designed for 157mm rear spacing.Requires a 6mm offset chainring to maintain the 56.5mm chainline. Maximum clearance for reinforced gravity frames
